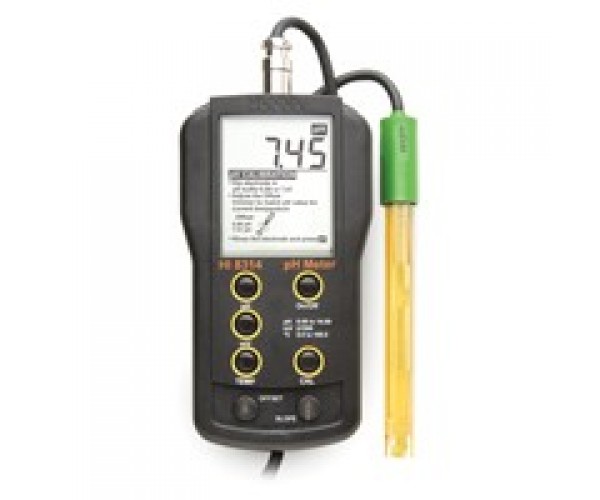

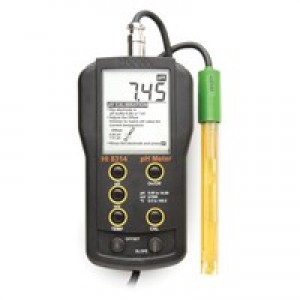

The HI83141 is a portable pH/mV meter designed to be accurate, reliable and easy to use.
The HI83141-1 uses the HI1230B pH electrode and HI7669-1 temperature probe using separate connections.
Automatic Temperature Compensation (ATC)
Two-point Calibration
Water-resistant : Compact, heavy-duty casing
Battery indicator : Low battery indicator
Auto shut-off
Details
HI 83141-1 is an hand-held pH/ mV/ temperature meter designed to be rugged, easy-to-use, reliable and practical. It is ideal for education and for measurements on the field.
The pH, mV and temperature ranges are easily selected using the rubber keyboard on the front panel. Calibration procedure is very simple with clear help messages displayed on LCD and adjustments are easily made with two trimmers on the front panel.
With temperature probe connected allows automatic temperature compensation of pH readings.
Moreover, HI 83141-1 features a low battery indicator that alerts the user when the battery needs to be replaced.
pH Range: 0.00 to 14.00 pH
pH Resolution: 0.01 pH
pH Accuracy: ±0.01 pH
pH Calibration: Manual, 2 point, through trimmers
pH Temperature Compensation: Automatic, 0 to 70°C (32 to 158°F)
pH Input impedence: 10¹² Ohms
mV Range: ±1999 mV
mV Resolution: 1 mV
mV Accuracy: ±1 mV
Temperature Range: 0.0 to 100.0°C; 32.0 to 212.0°F
Temperature Resolution: 0.1°C; 0.1°F
Temperature Accuracy: ±0.4°C; ±0.8F (excluding probe error)
Temperature Compensation: automatic, 0 to 70°C (32 to 158 °F)
pH Electrode: HI1230B PEI body, preamplified pH electrode with internal temperature sensor, BNC connector and 1 m cable (included).
Temperature probe
